Build an Active Speaker Protector: Keep Your Speakers Safe from Startup Noise
You power on your amplifier, and suddenly — a loud pop bursts through your speakers. That split-second noise might seem harmless, but over time it can permanently damage your speaker cones and voice coils. What if there was a simple, smart solution to eliminate that startup blast?
Enter the Active Speaker Protector — a small but powerful circuit that adds a programmable time delay to your speaker output, shielding them from abrupt voltage spikes and DC offsets when your amplifier turns on (or fails). In this guide from TechFix Hub, you'll learn how it works and how to build one yourself using affordable, widely-available components.
🔧 How the Active Speaker Protector Works
The heart of this circuit lies in delayed speaker activation. When your amplifier powers up, its internal capacitors need a few seconds to charge and voltages to stabilize. If your speakers are connected immediately, they receive those initial pops, clicks, or even dangerous DC voltage.
The active speaker protector solves this by:
- Keeping the relays OFF during the first 3–10 seconds after power-on
- Using an RC timing network (resistor + capacitor) to control the delay
- Activating a 12V relay only after the amplifier has fully stabilized
- Instantly disconnecting speakers if DC offset is detected (protecting against amplifier failure)
💡 Pro Tip: This circuit is also known as a "speaker delay circuit" or "relay protection module" and is commonly used inside professional audio amplifiers worldwide.
📦 Components List (BOM)
Before you start soldering, gather these parts. All are affordable and widely available at local electronics stores or online (AliExpress, Amazon, Mouser):
| Component | Value / Specification | Quantity | Purpose |
|---|---|---|---|
| Relay | 12V DC, 5-pin, 10A | 2 | Switches L/R speaker outputs |
| NPN Transistor | 2SC945 (or BC547) | 2 | Drives relay coils |
| NPN Transistor | 2SC9013 (or BC547) | 1 | Delay timing control |
| Rectifier Diode | 1N4007 | 5 | Flyback protection + rectification |
| Electrolytic Capacitor | 220µF / 50V | 2 | Delay timing + filtering |
| Resistor | 10kΩ (¼W) | 4 | Bias and pull-down |
| Resistor | 1kΩ (¼W) | 1 | Base current limiter |
| Resistor | 39kΩ (¼W) | 1 | Timing resistor |
| Trimpot | 220kΩ or 500kΩ | 1 | Adjustable delay (3–10s) |
| Connector | 3-pin wide (5mm pitch) | 2 | Speaker input/output |
| Connector | 3-pin narrow (3.5mm pitch) | 1 | +12V power input |

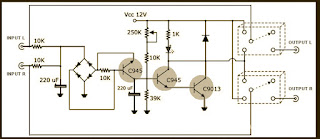

📐 Circuit Schematic and PCB Design Tips
The schematic uses classic transistor-switching topology. The 2SC9013 transistor forms an astable delay network with the 220µF capacitor and the trimpot. Once the capacitor charges to ~0.7V, the transistor conducts, triggering the 2SC945 drivers, which energize both relays simultaneously.
PCB design recommendations:
- ✅ Keep relay traces thick (≥2mm) — they carry full speaker current
- ✅ Place flyback diodes physically close to relay coils
- ✅ Use a ground plane under the timing section to reduce noise
- ✅ Separate power traces from signal traces to avoid interference
- ✅ Add mounting holes (M3) at the four corners for secure installation
🔌 Wiring the Circuit (Step-by-Step)
- Power Supply Connection — Connect the circuit to a regulated 12V DC source. You can tap this from your amplifier's internal supply (after the rectifier) or use a dedicated 12V adapter.
- Speaker Inputs — Connect the amplifier's left and right outputs to the circuit's input terminals.
- Speaker Outputs — Run wires from the circuit's output terminals to your actual speakers. These pass through the relay contacts.
- Relay Function — At power-on, relays stay OPEN (silent). After the delay, they CLOSE and audio flows.
- Flyback Diodes — The 1N4007 diodes across each relay coil absorb the inductive spike when the relay switches off, protecting the transistors.
🛠️ Assembly Instructions
- Prepare the PCB — Follow the schematic layout. Insert components from lowest to highest (resistors → diodes → transistors → capacitors → connectors → relays).
- Solder Carefully — Use 60/40 tin-lead solder or lead-free with flux. Avoid cold joints and bridges. Trim excess leads with flush cutters.
- Adjust the Trimpot — Before final assembly, power the board and use a multimeter to set your desired delay (turn clockwise for longer delay).
- Mount Inside Amplifier — Secure the PCB with M3 screws and spacers. Keep it away from heat sources (power transistors, transformers).
- Final Test — Power on the amplifier. You should hear silence for 3–10 seconds, then a soft "click" from the relays — followed by clean audio. No pop!
🔍 Troubleshooting Common Issues
| Symptom | Possible Cause | Solution |
|---|---|---|
| Relays don't click at all | No 12V reaching the board | Check power supply and fuse |
| Relays click instantly (no delay) | Capacitor shorted or trimpot at minimum | Replace 220µF cap; adjust trimpot |
| Delay too long (>15s) | Trimpot set too high | Turn trimpot counter-clockwise |
| Relays chatter / click repeatedly | Unstable power supply | Add 1000µF filter capacitor at input |
| One channel only works | Bad solder joint on relay | Reflow solder on affected relay pins |
✅ Why Every Amplifier Needs a Speaker Protector
- 🛡️ Protects Your Speakers — Blocks startup pops and dangerous DC offsets that can burn voice coils in seconds
- 🎵 Improves Audio Experience — Clean, professional power-on behavior (like commercial amplifiers)
- 💰 Affordable & DIY-Friendly — Total build cost under $5 with common components
- 🔧 Versatile — Compatible with any amplifier from 10W to 500W (adjust relay rating accordingly)
- 🧯 Emergency Protection — Instantly disconnects speakers if your amplifier fails with DC output
🎯 Conclusion
A little prevention goes a long way. Building an active speaker protector is a smart move for anyone serious about audio equipment. It's an easy project with big benefits — shielding your speakers, enhancing sound quality, and giving you peace of mind every time you power up your system.
So, roll up your sleeves, grab your soldering iron, and give your speakers the protection they deserve. If you found this guide useful, check out our other amplifier projects and audio circuit tutorials here at TechFix Hub.
🔔 Did you build this circuit?
Share your results in the comments below, and don't forget to bookmark this page for future reference!
